GTEN Ball Screw FSU Type

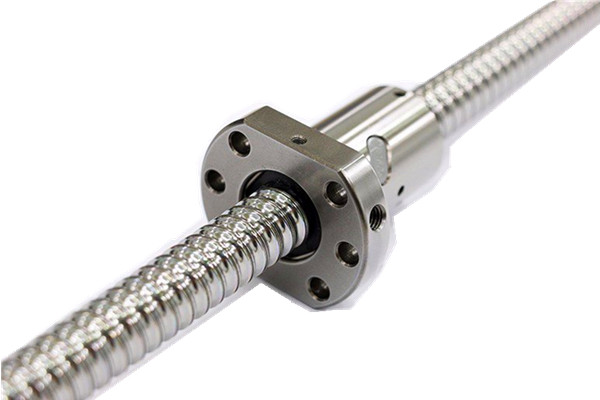

Ball Screw FSU Type

GTEN FSU ballscrews is high precision and smoothly,it wildly used in Electrical , Automotive , Mechanical, Building, Furniture, Machine assembly, Computer, Air industry.
It usually right thread, part model can produce left thread.

FSU
 FSU Type Unit：mm
Model Dimensions
d I Da D A B L W X Type H Q n Ca(Kgf) Coa(Kgf)
     1604-4 16 4 2.381 28 48 10 45 38 5.5 A 40 M6 T4 944 1254
◎   1605-3 16 5 3.175 28 48 10 42 38 5.5 A 40 M6 T3 1049 1144
     1605-4 16 5 3.175 28 48 10 50 38 5.5 A 40 M6 T4 1344 1525
     1610-3 16 10 3.175 28 48 12 65 38 5.5 A 40 M6 T3 1084 1232
     2005-3 20 5 3.175 36 58 10 47 47 6.6 A 44 M6 T3 1181 1496
◎   2005-4 20 5 3.175 36 58 10 53 47 6.6 A 44 M6 T4 1512 1995
     2010-3 20 10 3.969 36 58 10 68 47 6.6 A 44 M6 T3 1621 1925
     2504-4 25 4 2.381 40 62 11 46 51 6.6 A 48 M6 T4 1178 2046
     2505-3 25 5 3.175 40 62 10 47 51 6.6 A 48 M6 T3 1330 1936
◎   2505-4 25 5 3.175 40 62 10 53 51 6.6 A 48 M6 T4 1704 2581
     2510-3 25 10 4.762 40 62 12 75 51 6.6 A 48 M6 T3 2250 2772
     2510-4 25 10 4.762 40 62 12 85 51 6.6 A 48 M6 T4 2881 3695
◎  3205-4 32 5 3.175 50 80 12 53 65 9 A 62 M6 T4 1924 3403
     3206-4 32 6 3.969 50 80 12 58 65 9 A 62 M6 T4 2598 4217
     3210-3 32 10 6.35 50 80 16 77.5 65 9 A 62 M6 T3 3775 5877
     3210-4 32 10 6.35 50 80 16 90 65 9 A 62 M6 T4 4834 7835
◎   4005-4 40 5 3.175 63 93 16 56 78 9 B 70 M8 T4 2442 4342
     4010-4 40 10 6.35 63 93 18 93 78 9 B 70 M8 T4 5399 10074
     5010-4 50 10 6.35 75 110 18 93 93 11 B 85 M8 T4 5933 12313
     6310-4 63 10 6.35 90 125 18 98 108 11 B 95 M8 T4 6700 16230
     6320-3 63 20 9.525 95 135 20 138 115 13.5 B 100 M8 T3 8957 17945
     8010-4 80 10 6.35 105 145 20 98 125 13.5 B 110 M8 T4 7547 21268
     8020-3 80 20 9.525 125 165 25 143 145 13.8 B 130 M8 T3 10168 23611
Note : model with sign ◎ can be produced in left helix.
