PMI SMA Series Heavy Load Type

Features

The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Therefore, it can be applied in any installation direction. Furthermore, SMA series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion.

The patent design of lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore, the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability.

Characteristics

• Compact, Four-way Equal Load
• Self Alignment Capability
• Smooth Movement with Low Noise
• Interchangeability

Dimension

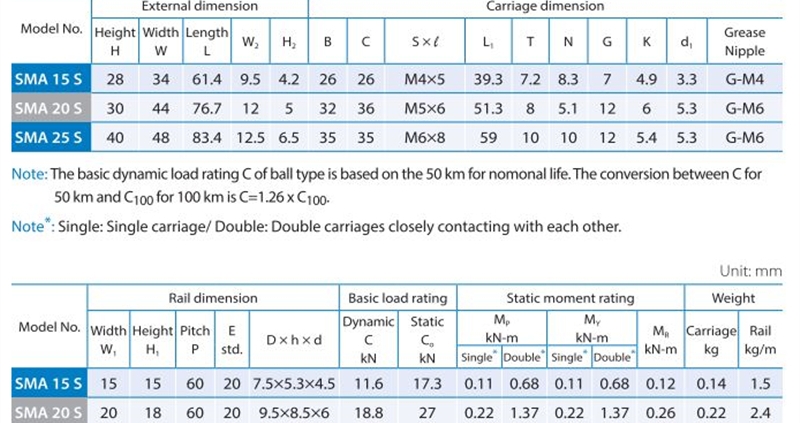

SMA-A	SMA-E	SMA-S
Installed from top side of carriage with the thread length longer than MSA-E type.	This type offers the installation either from top or bottom side of carriage.	Square type with smaller width and can be installed from top side of carriage.
