S3000K Series Plummer block

Plummer block
Model No Shaft Dia Boundary dimensions(mm)
D H H1 I A
S3024K 110 112 215 150 390
S3026K 115 125 239 160 420
S3048K 125 140 259 170 420
S3028K 135 150 278 175 460
S3052K 140 150 288 190 470
S3030K 150 160 365 200 540
S3056K 160 170 385 210 560
S3032K 170 170 405 210 560
S3034K 180 180 425 235 615
S3036K 200 200 450 255 690
S3038K 220 210 495 265 720
S3040K 240 240 547 285 820
S3044K 260 250 557 295 860

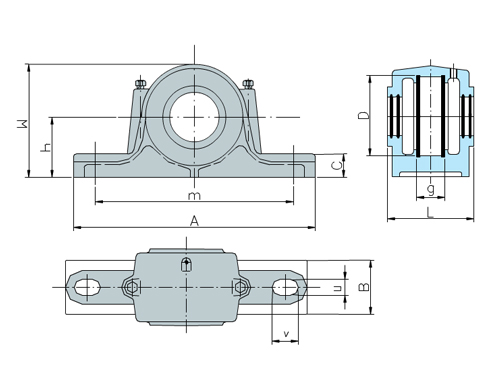

SN drawing
