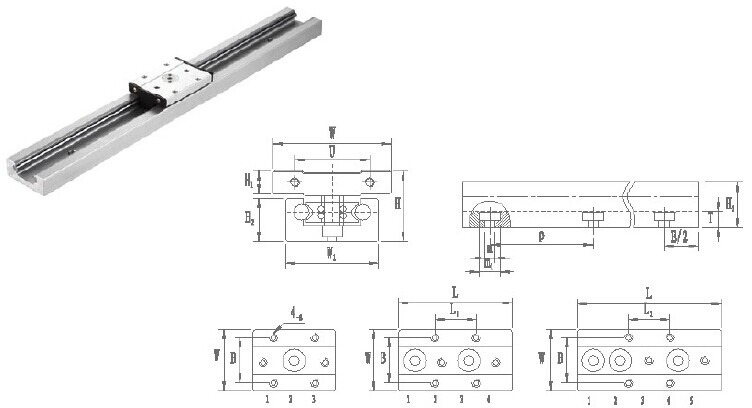

SGR SGB Linear motion slide units

SGR SGB
SG Full set SGR SGB Weight
(gf/m)
SGR SGB H W W1 H2 dp P shaft Weight
(kg/m)		 T m1 m W H1 L B L1 S Basic safety
load power		 Rated Dgnamic
Torque(N.m)
Yo Zo
15N -3 32 38 38 18.5 6 120 6 1.651 8 8 4.5 44 12 60 26 26 M5 490 460 10.2 9.2 9.8 110
15N -4 80 700 660 14.5 13.2 14 145
15N -5 100 980 920 20.3 37 39 185
15 -3 32 46 46 18.5 6 120 6 1.784 8 8 4.5 46 12 52 32 36 M5 490 460 13.8 74 7.8 105
15 -4 72 700 660 19.8 21.1 22.4 140
15 -5 84 980 920 27.4 44.3 47 170
20N -3 36 47 47 22.5 6 120 6 2.247 9 9.5 5.5 47 12 80 38 30 M6 700 980 29.4 25.4 18.2 195
20N -4 103 1000 1400 42 72.8 52 265
20N -5 132 1400 1960 84.2 129 92.4 350
20 -3 36 60 60 22.5 6 120 8 2.247 9 9.5 5.5 60 12 72 50 40 M6 700 980 42.1 21.5 15.4 210
20 -4 100 1000 1400 60.2 61.6 44 280
20 -5 116 1400 1960 84.2 129 92.4 350
25 -3 44 69 69 26 7 120 10 3.873 10 11 6.5 70 16.3 100 57 45 M8 1260 1470 67.62 48.51 41.58 460
25 -4 133 1800 2100 96.6 138.6 118.8 615
25 -5 166 2520 2940 135 291.06 249.48 775
35 -3 45 90 90 35 8.5 160 12 6.442 12 14 8.5 100 18 140 82 62 M10 2800 2800 159.6 126 128 1100
35 -4 185 4000 4000 228 360 360 1450
35 -5 230 5600 5600 319.2 758 756 1835
