STAF BGXW WIDE RAIL LINEAR GUIDES

BGXW  wide rail linear guides
1. Patented return spacer integrated oil-seal and retainer
2. Superior dust protection
3. Diverse combination inherited from the BG series
Model : 35

APPLICATIONS:

Automation equipment、Transportation equipment、Equipment that can bear single-axis torque、Precision Measuring equipment、Semi-conductor equipment ect.

Four-way Equal Load and Self-adjustment Capability

Four rows raceways with 45° contact angle design enabling the BGW series to be used in all orientations.

The DF-configuration also provide excellent self-adjustment capability to absorb installation errors and fit the requirement of high accuracy.

Optimized Lubrication Path

Unique circulation design provides stable motion performance and greatly enhances the lubrication capability (uniform grease distribution and no leakage)

High Rigidity and Space Saving

Wide rail design provides high rigidity against the moment in a single axis configuration.

With Low profile design, BGW series also provide ideal solution for applications with limited space.

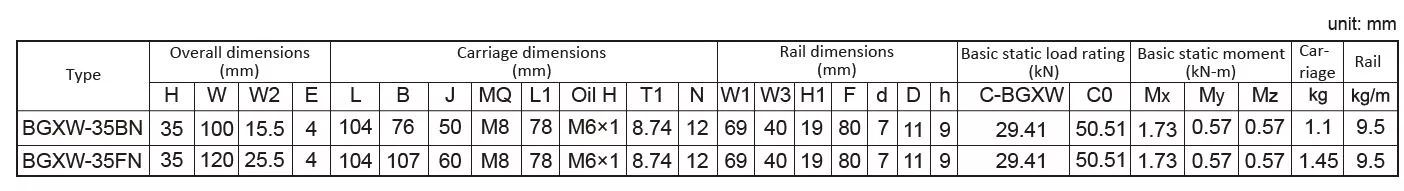

BGXW Linear guide Model NO:

BGXW-35BN BGXW-35FN
