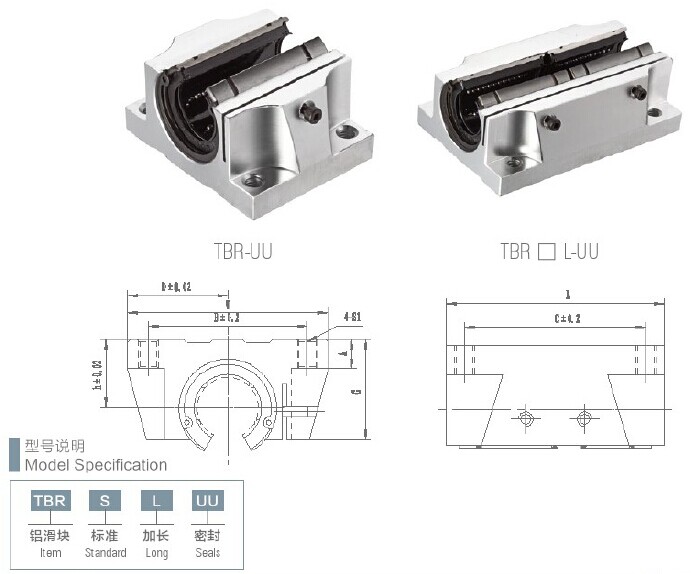

TBR-UU TBR…L-UU Linear motion slide units

20141024172441 34494 1
Part Number Main dimensions and Mounting dimensions (mm) Basic Load Rating Weight(g)
h D L W G A B C S1 dyn.c stat.co
TBR16UU 18 31 42 62 26 8 50 30 M5 392 490 180
TBR20UU 21 34 51 68 31 10 54 37 M6 784 1176 300
TBR25UU 38 41 65 82 41 12 65 50 M8 1568 2352 600
TBR30UU 33.5 45.5 75 91 48 12 75 60 M8 1764 2940 900
Part Number Main dimensions and Mounting dimensions (mm) Basic Load Rating Weight(g)
h D L W G A B C S1 dyn.c stat.co
TBR16LUU 18 31 85 62 26 8 50 60 M5 392 490 180
TBR20LUU 21 34 96 68 31 10 54 70 M6 784 1176 300
TBR25LUU 38 41 130 82 41 12 65 100 M8 1568 2352 600
TBR30LUU 33.5 45.5 140 91 48 12 75 110 M8 1764 2940 900
